Elkay's ezH2O bottle filling stations put fresh water within everyone's reach, helping reduce plastic bottle waste with a sustainable, innovative and award-winning product line. Our filtered units also reduce lead and other harmful contaminants. We continue to expand our ezH2O bottle filling station offerings.
Discover catalogues, sell sheets, case studies and infographics.

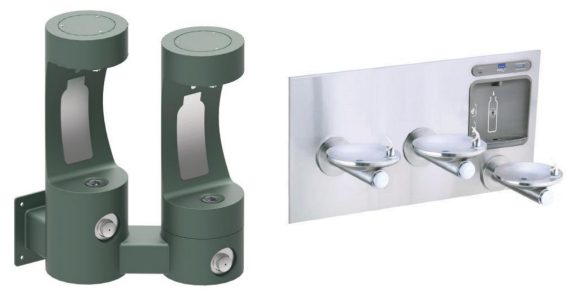

If you are looking for a drinking solution that is outside of our standard offerings, we can help you tailor an existing Elkay product to meet your unique specifications. Whether you want to change activation to fully touchless or create a unique triple fountain combination, our custom program will exceed your expectations.
Custom Product Capabilities and Colors:
*Based on min. order quantity.
All ezH2O bottle filling stations are customizable with university- or company-specific logos. Orders can include a combination of units (retrofit, in wall, ezH2O cooler combos, surface mounts). Customization is available for orders of 10 units or more. Units ordered must be either all filtered or all non-filtered within the same order.
Creating Your Custom Nameplate:
1. Choose your Elkay bottle filling stations.
2. Send us your desired logo and Pantone® colors.
3. Elkay’s custom team will handle the rest!
ezH2O® bottle filling stations provide convenient, sustainable and healthy hydration. They are ideal for environments both indoor and outdoor, including education, commercial, parks and recreation, government, health care, public facilities, fitness clubs and hospitality. Our expansive portfolio offers solutions to fit every budget and installation requirement. Options include standard single and bi-level, mechanical, energy efficient, surface mount, vandal resistant, architectural and retrofit models.
Elkay’s original bottle filling stations offer essential features and benefits in an array of models to fit your needs.
Installation Applications: Wall mount and in wall.
Designed specifically for outdoor installations, we offer a family of bottle filling stations ideal for parks and recreation areas, pools, golf courses, stadiums, schools and business campuses. Some models included in our original ezH2O line are also rated for outdoor use, such as our vandal resistant and legacy models.
Installation Applications: Wall mount and pedestal.
Feature / Benefits
Why should I install an Elkay bottle filling station?
Elkay ezH2O® bottle filling stations provide users with convenient, refreshing, great tasting drinking water without the need for disposable plastic bottles. They encourage healthy hydration habits as well as promote sustainability.
Where can bottle filling stations be installed?
Everywhere! Our comprehensive portfolio of bottle filling stations means that we are sure to have a model to fit your needs. Elkay's ezH2O® bottle filling stations are ideal for many environments both indoor and outdoor including education, commercial, health care, fitness clubs and hospitality and more. We provide solutions for wall mount, inwall and outdoor applications and offer a variety of models such as energy efficient, vandal resistant, mechanical, surface mount and architectural.
How long does it take to install a bottle filling station?
On average, it takes approximately 1-2 hours to complete a retrofit installation using existing plumbing.
How easy is it to replace existing drinking water fixtures with an ezH2O® bottle filling station?
It depends on the type, style and location of your current water delivery fixture. We recommend contacting a local sales representative who can provide an assessment of your site and current fixtures and suggest the best option for your specific needs.
How much water pressure is required?
ezH2O® bottle filling stations are designed to operate on 20 psi to 105 psi supply line pressure. Our bi-level non-filtered units require a minimum of 40 psi supply line pressure to ensure adequate stream height from each bubbler when activated simultaneously. Bi-level filtered models, regardless of supply line pressure, cannot provide adequate stream height from each bubbler when activated simultaneously. Please consult our specification sheet for the detailed specifications for the model you are considering.
What is lead? Where does it come from?
For centuries, lead has been widely used in plumbing systems that transport water. Despite changes in plumbing codes making it illegal to use lead pipes or solder, lead is still found in older pipes, solder and brass fittings in existing plumbing systems. Lead is toxic and continuous exposure can cause a variety of health problems, especially in infants and children. Please visit epa.gov/lead to learn more.
Do your products reduce lead?
Our WaterSentry® Plus and WaterSentry VII filtration systems reduce lead to meet the requirements necessary to achieve our NSF/ANSI 53 certification, making the water cleaner and healthier.
Water delivery product examples include:
- Elkay Filtered Bottle Filling Stations.
- Elkay Filtered Water Coolers.
Our filters are also sold separately and can be retrofitted onto any existing Elkay or non-Elkay branded water cooler, fountain or bottle filling station with Elkay’s vandal-resistant retrofit filtration kit. Kits are available with and without a filter status monitor and alert.
Do your products contain lead
No. Our drinking water products have been lead free for more than two decades. They are certified to NSF/ANSI 372 as lead free by the Water Quality Association.
How does Elkay test its filters?
Elkay tests and certifies our filters to NSF/ANSI Standard 53.""NSF/ANSI Standard 53 for Drinking Water Treatment Units is the nationally recognized standard for evaluating and certifying drinking water treatment systems for the reduction of contaminants from drinking water. Water filters are tested and certified to NSF/ANSI 53 to ensure they reduce contaminants, including lead, per the requirements of the standard"" (Certified Product Listing, NSF).
What type of maintenance and cleaning is required?
How can I tell if the bottle filling station is being used?
You can tell how much water is being consumed from data provided by the Green Ticker™ feature on the unit. The Green Ticker counts the number of 20 oz. single-use water bottles saved from waste by using reusable bottles and cups at the ezH2O®.
I’m getting an error message scrolling across my bottle counter area (Green Ticker™). How do I know what it means?
In your user manual, there is a table that explains each error code and what the cause of that particular error code is for repair purposes. You can find a copy of your user manual by searching your specific SKU on our website. Simply type the SKU into the search box in the upper right corner. When the page appears, click on the Downloads tab to access your user manual.
Where is the data tag located on the bottle filling station?
The serial data tag is located on the bottom of the cooler. Previously, there was a separate tag for the bottle filler and an additional one on the cooler. We have consolidated it into one tag on the underside of the cooler basin.
